10-32 Quick Reference Guide
Size Chart
| Screw | O.D. | Tap | Tap Size | Close Fit | Clost Fit Size | Free Fit | Free Fit Size |
|---|---|---|---|---|---|---|---|
| 10-32 | 0.1900 | 21 | 0.1590 | 9 | 0.1960 | 7 (13/64) | 0.2010 |
Button Head Bolt
Stocked Sizes
Available lengths: 1/4" | 1/2" | 5/8" | 1" | 1.5" | 2" | 2.5" | 3"
Where to Buy
Socket Button Head Screws - Bolt Depot

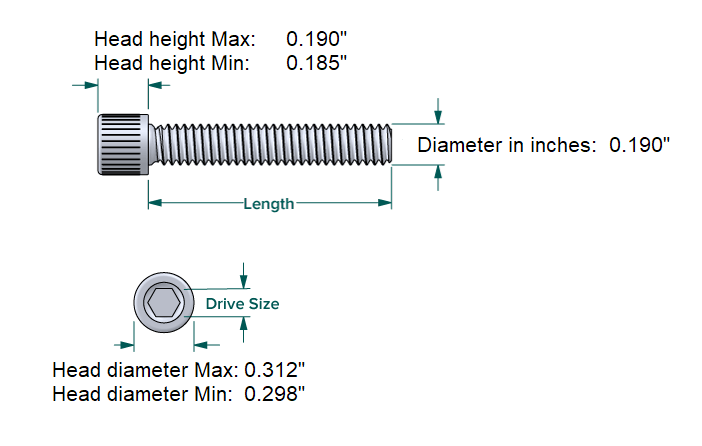

Cap Head Bolt
Stocked Sizes
Available lengths: N/A
Where to Buy
Socket Cap Head Screws - Bolt Depot

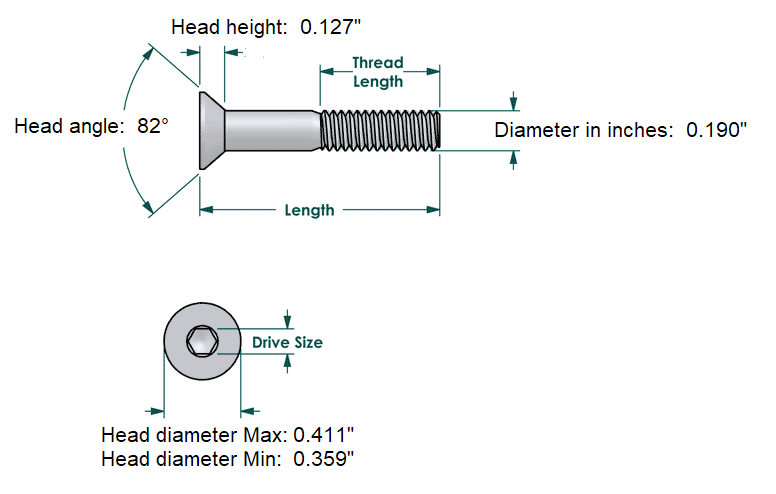

Chamfer Head Bolt
Stocked Sizes
Available lengths: 3/8
Where to Buy
Socket Flat Head Screws - Bolt Depot
Shoulder Bolt
Stocked Sizes
Available lengths: 3/4 | 1.25
Where to Buy
Shoulder Bolts - Bolt Depot
Lock Nut
Stocked Sizes
Available types: Standard | Nylock
Where to Buy
Nuts - Bolt Depot
Rivenut
Stocked Sizes
Available lengths: Yes
Where to Buy
Rivnuts 10-32 Hanson Rivenut
Washer
<img src={washer} width=”300”/>
Stocked Sizes
Available types: Standard | Fender
Where to Buy
Washers - Bolt Depot
Fender Washer - Bolt Depot
